So last week when I got my new to me diesel genny going, I went to plug in my compressor for a test. Looking forward to finally having air out here.

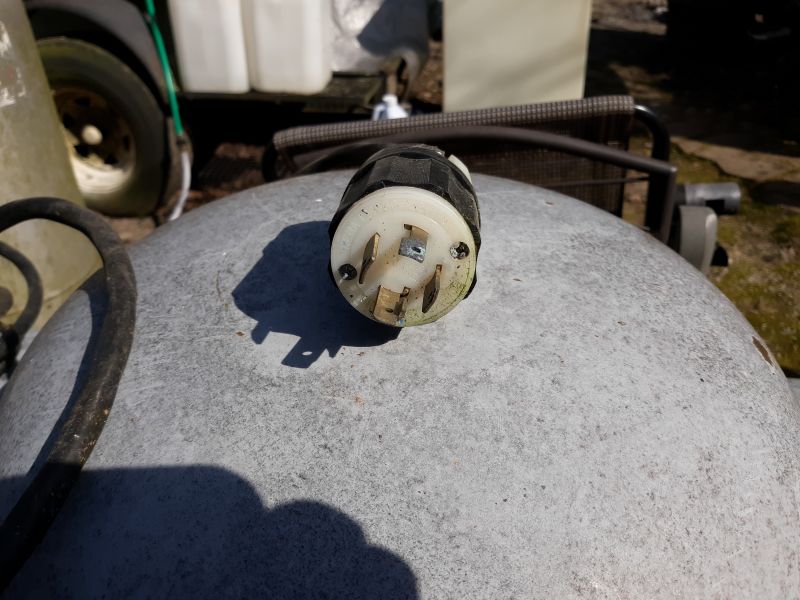

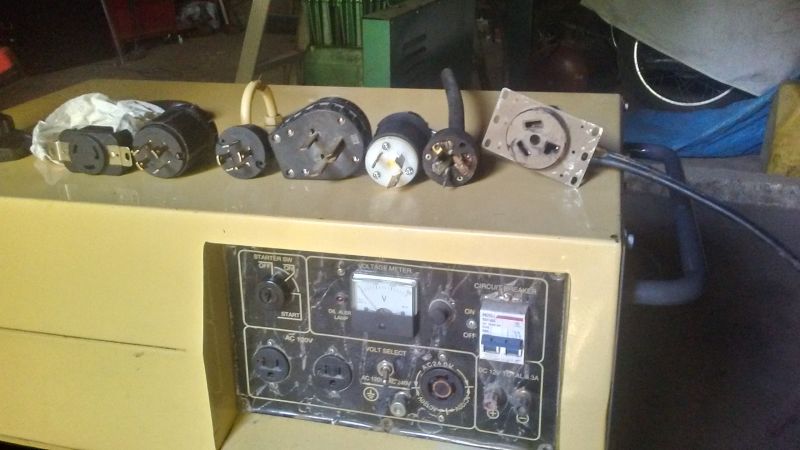

Oops, different plugs. So back home in the ghetto I grab all my 220 stuff. Try as I might, not one fits the genny! 3 prong, 4 prong, straight, diagonal, L shape in, L shape out, different diameters..
Why?
Dammit.
|
|
darz5150
Member
|
# Posted: 7 Apr 2020 04:40pm
Reply
Looks like a twist lock style. ?
|
|
darz5150
Member
|
# Posted: 7 Apr 2020 04:42pm - Edited by: darz5150
Reply
Just checked Amazon. Got a few to choose from. Just search 220 twist lock plugs. ðŸ‘
|
|
darz5150
Member
|
# Posted: 7 Apr 2020 04:51pm
Reply
Here's a pic of one that fits one of our gennys.
Just stick it in and twist to lock it.
|
|
paulz
Member
|
# Posted: 7 Apr 2020 08:12pm - Edited by: paulz
Reply
Thanks Darz. I went through this on my well pump generator, has the same twist lock plug. First one I bought looked right but the diameter was larger
Next one had the one leg with the L bent in instead of out. Those I bought online. This time I will buy one local. To compound matters I may want an extension cord.
|
|
toyota_mdt_tech
Member
|
# Posted: 7 Apr 2020 09:46pm - Edited by: toyota_mdt_tech
Reply
You need to look at the amps obviously, then the smaller number ie L-14 etc, this is critical. They dont want you plugging in a 20 amp cord into a 30 amp plug. I think the L1430 is what you are after.
https://www.homedepot.com/p/Reliance-Controls-Twist-Lock-30-Amp-125-250-Volt-Plug-L14 30P/202216504
https://www.amazon.com/dp/B078BNBYXR/ref=psdc_3480710011_t3_B001TQAODC
|
|
Brettny
Member
|
# Posted: 8 Apr 2020 06:39am - Edited by: Brettny
Reply
By the looks of it you need a 240v 20a twit lock. There not that normal on generators but I own one that has one.
The one that earns posted is 30a I believe. The bent leg in ones are ususly the first to sell out in a poweroutage. I also say keep one on hand.
It looks like your collection dosnt have what looks like a normal 120v with one bar turned...so your collection has room to grow. Lol
I always just take a pic of the plug/recp. Then dig around in my electric stuff or go to the store. There is a NEMA number on them if you ever need to order one online.
Edited
|
|
sparky30_06
Member
|
# Posted: 8 Apr 2020 07:40am
Reply
If you look closely at the plug or cord end you will see a NEMA number that is the reference number that you need to get the correct plug. plugs are made differently to represent voltage and amperage so, when wired and protected properly, you can't hook the wrong voltage or protection up to your piece of equipment.
|
|
|
old243
Member
|
# Posted: 8 Apr 2020 09:15am
Reply
If you are unable to find the proper ends, to plug into the original receptacle on generator . You might get a modern twist lock receptacle, to mount in gen control panel. and mount in place of original. Or bring wires out into a junction box, and mount it some where on generator. If you don't intend to move it and it is undercover , you might hard wire it to a short cord and a female end. If you do this be sure to maintain proper grounding. I am a retired electrician, I remember all the ul and nema numbers changing, the was quite a shemozzell getting it all figured out. I tend to also , cobble my own stuff up, but keep it safe 220 will bite.old243
|
|
paulz
Member
|
# Posted: 10 Apr 2020 10:14am
Reply

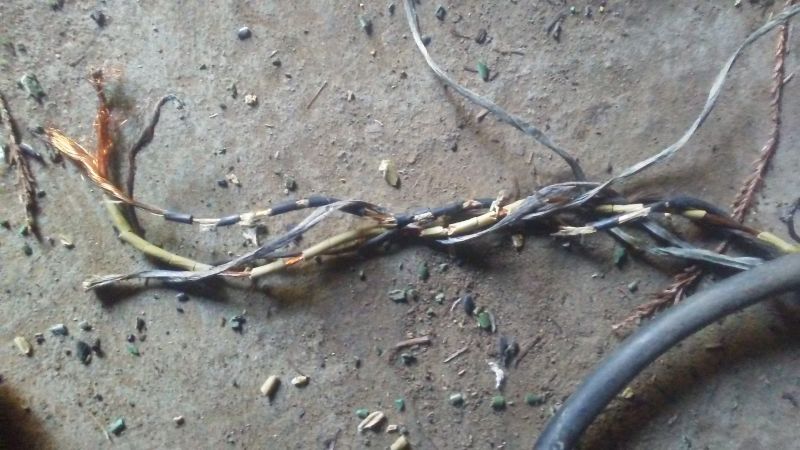

Thanks guys. I found the NEMA number on the socket. Also found the right plug, but when I removed the old one and stripped the wires back the insulation grumbled and fell off. Odd, the outside sheathing looked fine, no signs of burning. Just got new cable, another project for next week.
|
|
old243
Member
|
# Posted: 10 Apr 2020 02:48pm
Reply
looks like a case of old age. Glad to see you were able to get things figured out. Usually more than one way to skin a cat. old243
|
|
