keljohnso
Member
|
# Posted: 27 Nov 2016 04:17pm
Reply

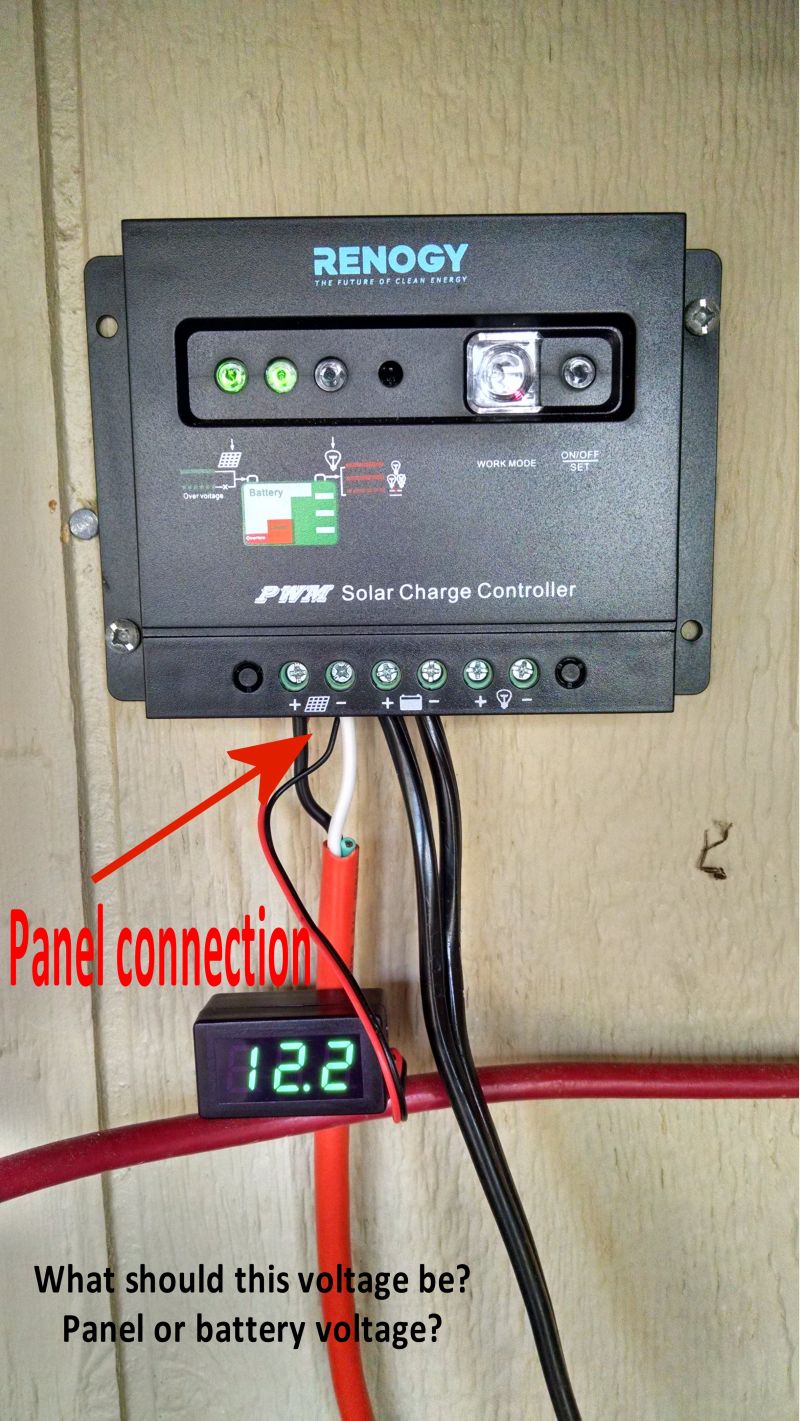

I have a Renogy PWM charge controller. I put a voltmeter on the leads coming from the panels so I could monitor the voltage from the panels.
However, with the batteries connected to the controller the voltage reads the battery voltage, around 12 volts.
When I dis-connect the batteries, the voltmeter jumps to around 22-23 volts.
Is this normal??
|
|
groingo
Member
|
# Posted: 27 Nov 2016 05:53pm - Edited by: groingo
Reply
Yep.
Got that one with my original 400 watt system but over time I got the Renogy PWM controller with LCD screen which Renogy doesn't sell any more but you can still get through Windynation.
This controller is unique because it is fully programable and has higher input voltage limits than current ones which means more charge juice for the batteries!
It is available here: https://www.amazon.com/Regulator-Controller-Digital-Adjustable-Settings/dp/B00JMLPP12 ?_e_pi_=7%2CPAGE_ID10%2C2316350214
The little one will get you by and makes a good backup but if you want some serious bang even for a small system this is the one!
|
|
keljohnso
Member
|
# Posted: 28 Nov 2016 06:02pm
Reply
It doesn't make sense to me why its reading battery voltage and not panel voltage. Anyhow, I was looking at this one. It give the amp reading from the panel, along with battery voltage, USB plugs and 12 pigtail plugs.
https://www.amazon.com/dp/B0191QN7OO/ref=wl_it_dp_o_pC_nS_ttl?_encoding=UTF8&colid=35 5GIA4W59KIS&coliid=I3AJN8EVKUGK0R
|
|
groingo
Member
|
# Posted: 30 Nov 2016 11:14am - Edited by: groingo
Reply
If you want panel reading just disconnect the positve power from the battery to the CC then test from the CC input plus and minus...that will give you panel output.
One tip, after hooking back up recheck your setting unless you stayed with defaults otherwise the disconnection of the battery will cause the CC to reset.
Regarding your pick for CC, I've used most brands and that is one I have no experience with but it does have some nice features like the dual USB output ports....would be nice if you could get a copy of the manual so you could see the charge specs before buying....get back and update if you get it.
|
|
keljohnso
Member
|
# Posted: 3 Dec 2016 04:26pm
Reply
I called Renogy and apparently what I'm seeing with the battery disconnected is the open voltage of the panels. So it seems the controller is working good.
SO I got a watt/power analyzer, https://www.amazon.com/gp/product/B01LVTST80/ref=oh_aui_detailpage_o00_s00?ie=UTF8&ps c=1
which I will install between the charge controller and the battery. This will tell me what I wanted to know.
|
|
LastOutlaw
Member
|
# Posted: 5 Dec 2016 08:36am
Reply
Are you sure that this unit will show panel output and not cc input to the batteries? Seems to me that hooking a guage between cc and batteries will only show output from cc to battery input or straight battery power level. I use the same controller on my bank to keep it charged from a couple small panels when I am not there. I also need something to show clear panel output to cc only.
|
|
groingo
Member
|
# Posted: 5 Dec 2016 11:24am
Reply
Again, download the manual before you buy it and Renogy has manuals listed seperately.
Also, buy it from the Renogy site on Amazon....returning is much simpler and faster.
|
|
|
