| Author |
Message |
Carbon83
Member
|
# Posted: 25 Sep 2015 10:25pm - Edited by: Carbon83
Reply
I am looking for some help on wiring a 100amp Square D panel i purchased at home depot. It has 6 spaces and 12 circuits. I have a Briggs and Stratton 8000W (running)/10000W(starting) generator to power my cottage. I am not sure if i made a poor choice on the panel or not. I am confused a little on how to power the whole panel and access all the breakers. Maybe I am missing something else!? Right now I wired in the 30amp twist lock line to the panel which can power 2 15amp breakers. But how can I power the remaining 4 breakers with the 4x20amp outlets that I have remaining on the generator. Do I need a different panel?
Thanks in advance to anyone who may be able to help!

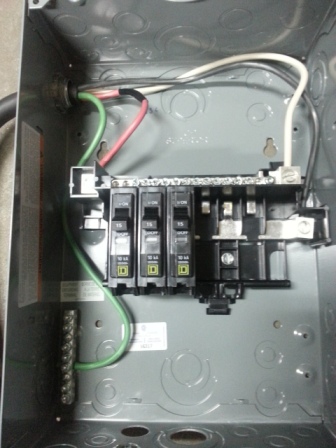

Here is a picture of the panel wired with the 30amp cord:
|
|
toyota_mdt_tech
Member
|
# Posted: 26 Sep 2015 12:40am - Edited by: toyota_mdt_tech
Reply
Are you feeding it with 110VAC or 220VAC from the generator. Info I need to steer you right. If you are feeding it with 110VAC, you need to put in a jumper between the red and black wire. Some people will make this connection in the cord itself, but that could be an issue if you plug it into anything else other than back-feeding your cabin.
Also, you can use the mini breakers and double your breakers/circuits.
|
|
Carbon83
Member
|
# Posted: 26 Sep 2015 12:20pm
Reply
I will be feeding it with the 220VAC..thats the 30amp twist lock plug rated for 120/240v. Is that all I need to hook up to power the panel?
|
|
toyota_mdt_tech
Member
|
# Posted: 26 Sep 2015 03:46pm - Edited by: toyota_mdt_tech
Reply
You are good to go. If it was me, I'd put in a 220V breaker (double pole) and run your feed to that. The white and green would remain in the same spot, but the red and black would hook to the breaker. The advantage to that is you can quickly interrupt the power if needed. Also, you want to interrupt the power when shutting it down or starting the generator. So you flip off the breaker, then you can shut down the generator instead of unplugging it at the generator every time before you shut down or start up. This prevents brown outs, low voltage etc. and you can just keep the generator plug hooked up. If you have an inverter generator, this isn't as critical. But an emergency interrupt easily accessible for you inside is handy.
The double pole breaker will eat up some space, so a good reason to fill it the rest of the way with mini breakers.
The 10AWG wire feeding it for 30 amps is perfect.
|
|
Carbon83
Member
|
# Posted: 26 Sep 2015 06:53pm
Reply
For some reason, I didn't think it was that easy of a hook-up, but when you asked if i was running 110 or 220, it got me thinking. I have more than enough power to run most things.
The wires running in the panel are 10awg. I just went with the rating the plug needed. I like the idea about the 220v breaker for an interrupt. Thanks!
|
|
Carbon83
Member
|
# Posted: 26 Sep 2015 06:53pm
Reply
For some reason, I didn't think it was that easy of a hook-up, but when you asked if i was running 110 or 220, it got me thinking. I have more than enough power to run most things.
The wires running in the panel are 10awg. I just went with the rating the plug needed. I like the idea about the 220v breaker for an interrupt. Thanks!
|
|
|
