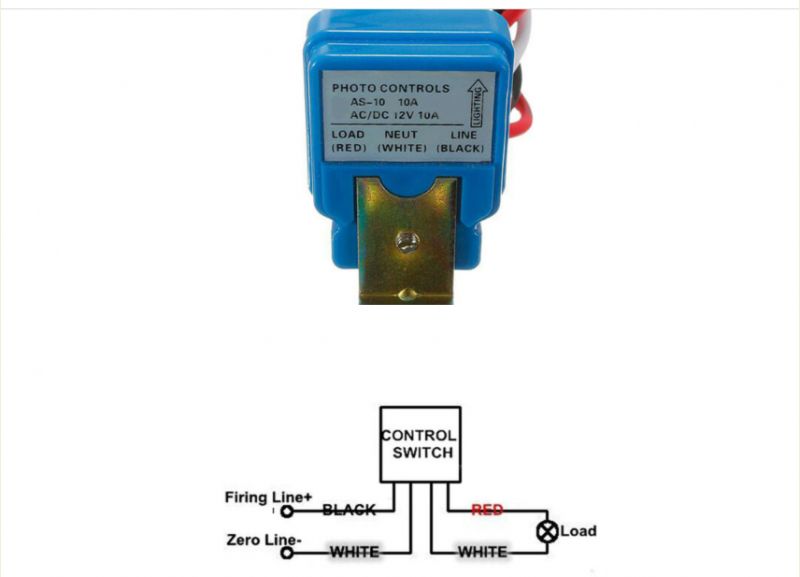

Got this switch, 12 both AC and DC so it says. How to I wire it to a DC battery? The arrow on the switch says Lighting, in case you can't read it. My guess is white to battery +, black to battery - and light -, red to light +.
The diagram underneath must be fore an additional switch, firing line, zero line?
|
|
travellerw
Member
|
# Posted: 4 May 2022 12:23pm
Reply
Ok.. I'm a little confused.. Is this a photo sensitive switch (turns on in dark and off in light)?
How I interpret it for DC! The "white" line is battery negative and you want both supply and load to connect to that terminal (negative from battery and negative from light).
The positive from the battery goes to the "firing line/black" and the positive from the light goes to the "load/red" terminal.
When the switch activates it will connect the "firing line/black" and the "load/red" terminals to turn on the light.
|
|
paulz
Member
|
# Posted: 4 May 2022 01:01pm
Reply
Hmm, that's different from what I was thinking. Here is the link to the dingus.
https://tinyurl.com/yey5eb5v
|
|
BRADISH
Member
|
# Posted: 4 May 2022 01:02pm
Reply
Quoting: travellerw How I interpret it for DC! The "white" line is battery negative and you want both supply and load to connect to that terminal (negative from battery and negative from light). The positive from the battery goes to the "firing line/black" and the positive from the light goes to the "load/red" terminal. When the switch activates it will connect the "firing line/black" and the "load/red" terminals to turn on the light.
I concur with this take.
|
|
Nate R
Member
|
# Posted: 4 May 2022 01:24pm
Reply
I agree with BRADISH and travellerw.
|
|
ICC
Member
|
# Posted: 4 May 2022 02:07pm
Reply
Agree with the crowd.
|
|
paulz
Member
|
# Posted: 4 May 2022 02:43pm
Reply

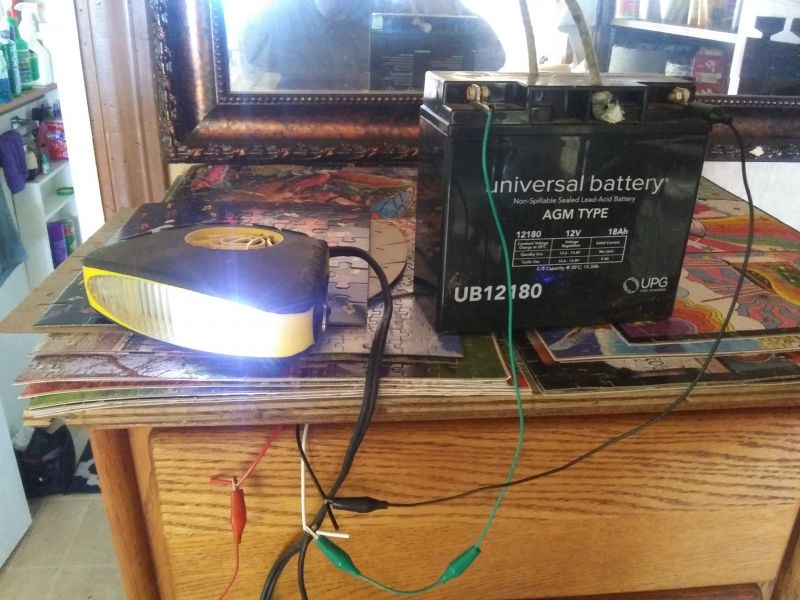

Yep, that works! Little strange hooking the black to DC+. Now I just have to remember why I bought it.
Thanks guys!
|
|
|
