paulz
Member
|
# Posted: 22 Feb 2022 11:03am - Edited by: paulz
Reply
I want to run 6g cable part way through an existing underground PVC conduit. The conduit contains a fiber optic cable I can't cut. I need my cabling to come out mid way in the conduit.

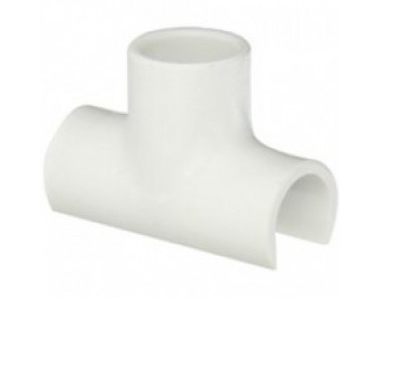

I see they make 'snap Tees' you glue or clamp on, then drill the hole in the pipe. I'd rather use a 45, or a sweep, to facilitate pulling the cable through. Thinking maybe I could take one and slice it like the snap Tees.
Whatdya think? Other options? There is no pressure in the pipe obviously, may not even be dry inside, I'll find out when I drill the hole. I don't think the fiber or any electrical I run will care.
|
|  | |
|
|
BRADISH
Member
|
# Posted: 22 Feb 2022 04:51pm
Reply
While I like the general idea, and think it could work - I think you will find that there is a form in the plastic to stop you from inserting a pipe all the way through straight part of the 'Y'. You would likely need to use a dremel or something to waller this out a bit, although it might be a bit messy. The snap Tee won't have this seating stop built into it since it is designed specifically for the pipe to lay through it.
Sealing the Y back up afterwards may be a bit more difficult if you accomplish removing that seating surface unevenly.
Let us know what you end up doing!
|
|
gcrank1
Member
|
# Posted: 22 Feb 2022 08:05pm
Reply
Do an online search for that angled snap fitting, I cant imagine they are not being made. May have to vary your search question tho.....
|
|
ICC
Member
|
# Posted: 22 Feb 2022 08:50pm - Edited by: ICC
Reply

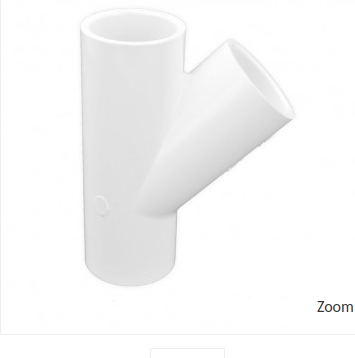

The fitting shown above in the image labeled "Screenshot_2022022.png" is called a wye. I have seen them in a snap-on or clamp-on configuration, but in sizes meant for use in drain and waste pipes; 3 inch and bigger.
BRADISH is correct. Every std fitting I have seen are made with a shelf, a stop by reducing the internal diameter so the pipe it is being joined to does not get inserted too far, and that allows the ID to be matched.
I believe there are, or may be, rules that allow and disallow certain combinations of optic cables and current carrying wires in the same raceway or conduit. I do recall from building commercial structures which were then wired with all sorts of electrical wires and optical cables that some optical cables use a metallic jacket which precludes their use in a conduit that has NEC governed wires. And that if lube is used to pull wires/cables that some optical cables may be damaged by certain types of lubes commonly used for power wires. But that is only stuff that stuck in my mind and I may have things wrong.
|
|
ICC
Member
|
# Posted: 22 Feb 2022 08:55pm
Reply
And if you were pulling another wire through the conduit you would want to be sure it did not snag and pull on the optical cable. Optical cables meant to be pulled through conduit have a special pull wire so the optical cable is not stressed. That is a IIRC.
|
|
ICC
Member
|
# Posted: 22 Feb 2022 09:02pm - Edited by: ICC
Reply
They are called saddle wyes or saddle tees.
|
|
paulz
Member
|
# Posted: 22 Feb 2022 10:03pm
Reply
I think you guys are right, there is a step inside those Ys. Going to the hardware store tomorrow to have a look.
I've had a 900w solar array out where the pipe is for about a month now, getting good sun there. Cables are just laying on the ground now.
|
|
Irrigation Guy
Member
|
# Posted: 23 Feb 2022 08:47am
Reply

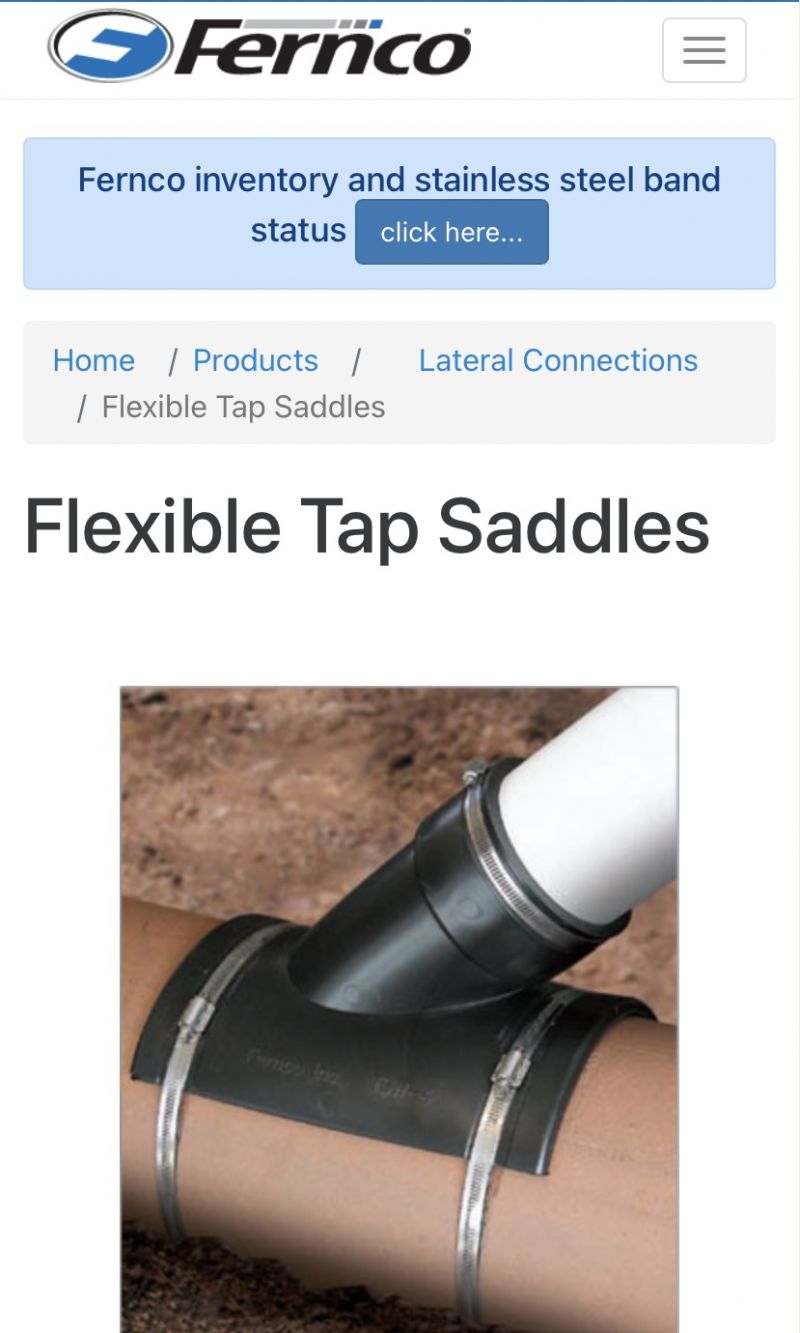

You could try this
|
|
|
paulz
Member
|
# Posted: 23 Feb 2022 10:30am
Reply
Wow, perfect, except 4" is the smallest.
|
|
Irrigation Guy
Member
|
# Posted: 23 Feb 2022 02:36pm
Reply
What size do you need
|
|
paulz
Member
|
# Posted: 23 Feb 2022 08:35pm
Reply
Sorry 2", thought I had mentioned it.
|
|
|
