Message |
kittysmitty
Member
|
# Posted: 10 Nov 2021 03:55pm
Reply
In November the cabin get's the most use and unfortunately the time with the least amount of sunshine. This would be my 3rd generation charging system. Started with a lawn mower engine and a small belt drive auto alternator. The latest is a 5.5 hp power washer engine and a 140amp Delco alternator direct drive using one of these, https://theepicenter.com/coupling-l-095-modified.html I can't seem to have a spider that lasts very long. I switched to Hytrel Rubber spider and that didn't help. Am I asking too much? Is the coupler undersized? Thoughts? Suggestions? Thanks
|
|
gcrank1
Member
|
# Posted: 10 Nov 2021 08:31pm - Edited by: gcrank1
Reply
I started like that back in about '85, the little B&S engine couldnt spin the Toyota car alt fast enough to much amps out of it. The faster the alt spins. the more it outputs and the more hp it takes to turn it. I struggled with it off/on for a couple seasons but had better luck just taking 1 or both DC Marine batteries home to charge. We did that for decades, and when the bats wouldnt give our energy hog 12vdc Edison base RV bulbs enough to actually be bright we'd fire up the oil lamps. Plus the thing was NOISY and Far Too Long.
I also had trouble with the coupling. Alignments are Critical, dont depend on a coupler to compensate unless low load, low rpm.
Game Changer for Us:
All LED lights! We wired for 120vac and run everything from the bat-bank to the 300W Pure Sine Wave inverter. That 300W PSW is for our everyday lights, usb and tool chargers, small tv/vcr; ie, 'light draw' stuff. When I want/need to run off the gen for 'big stuff' like the microwave, etc. I start the gen, unplug the line from the inverter and plug into the gen 120v outlet. Easy-peasy.
We bought a little Champion Inverter Generator, iirc it is 1700w continuous, 2000w peak, still at about $450 at our TSC store. It runs my power tools, 700w microwave, 1000w hot water heater, etc. and the automotive 120vac 20amp smart-charger for the bat-bank IF needed (but only one at a time). Don't bother with 12vdc charging even if the gen has 12v taps, the amps arent high enough.
Im pretty sure the Lil' Champ would run a bigger charger, my 20a is what I have and my cabin solar is 600W for currently 2x 12v/100ish ah bats (it will work for 4x 100+ah bats though).
Btw, the Lil' Champ (my name for it) is easy on gas, quiet, and only about 45# so easy to move. They do make a dual-fuel model for a bit more if you would like to run on LP gas.
|
|
paulz
Member
|
# Posted: 10 Nov 2021 08:55pm
Reply
I have a coupler like that on my log splitter. 10hp Briggs, 1 inch shaft I believe. Never been a problem but it only has to work intermittently for short bursts.
|
|
Bruces
Member
|
# Posted: 11 Nov 2021 07:22am
Reply
I have dealt with (mechanic in the Arctic ,mine sites ,heavy equipment shops ,truck shops etc ) like that on tons of equipment and for the most part they have worked perfectly well with no failures .I bet you have an alignment issue between the alt and the engine that is just enough to cause you grief .If the coupler is a real problem ,I would use a belt and pulley arrangement instead .Getting way off topic ,I have made generators like this for service trucks ,my airplane etc ,and we always had great luck with the old (pre 1986) Chrysler 100 amp alternators ,I can’t remember ever having to replace one and they can be had very inexpensively ,nothing wrong with delco units but the Chrysler ones just lasted forever .Of course a simple inexpensive external voltage regulator was required for the Chrysler unit .
Have fun !
|
|
toyota_mdt_tech
Member
|
# Posted: 11 Nov 2021 03:38pm
Reply
Why 140 amp alternator, way too heavy of a load, try something like a 60A or even a 42A unit.
|
|
kittysmitty
Member
|
# Posted: 13 Nov 2021 04:18pm
Reply
140 amp to reduce the run time.
|
|
gcrank1
Member
|
# Posted: 13 Nov 2021 04:59pm - Edited by: gcrank1
Reply
A battery bank needs to be charged at no more than the rate the battery manufacturer specifies. This is especially important with lead acid batteries.
LFP can be discharged/recharged safely at a high rate.
I dont think that alt will make peak power at the rpms the engine runs at anyway. Have you measured the actual charging amps running?
Unless you go to great lengths to get the engine and alt shafts perfectly straight, not just 'matched up' at the coupler, you will have issues. I recommend using a belt drive also if you must stick with this. With, say, a 2:1 pulley ratio, and enough hp to drive the alt under load, the alt could spin at twice the engine rpm so the engine could possibly be run slower, be quieter and use less gas.
|
|
kittysmitty
Member
|
# Posted: 14 Nov 2021 04:48pm
Reply
Haven't measured the charging amps with a meter, but with a 100amp hour battery, inverter and 1000 watt ac load the battery voltage will remain constant at around 13 volts. so, at least 75 amps with out calculating any loss.
The engine turns at 3600 rpm so I am not getting peak amps out. Today, the fan started to scrap the bracket, so I know the aliment is an issue.
Time to work on Generation 4 with a belt drive, more forgiving and as you suggested and with a 2 to 1 ratio will spin the alternator faster for more output. An added benefit might be increased cooling with a faster fan speed.
|
|
|
gcrank1
Member
|
# Posted: 14 Nov 2021 04:52pm
Reply
Do you have a tach on the engine to know its actually turning 3600rpm, that is really spinnin'.
|
|
kittysmitty
Member
|
# Posted: 16 Nov 2021 07:06pm - Edited by: kittysmitty
Reply
No tach, but manufacturers specs. And comparing alternator power curve to output, 3600 rpm is about right
|
|
kittysmitty
Member
|
# Posted: 23 Nov 2021 05:02pm
Reply
gcrank1. you mentioned a 2 to 1 ratio. I assumed it was pulley diameter, but was told today it was circumference.
Which is it? Thanks
|
|
gcrank1
Member
|
# Posted: 23 Nov 2021 07:37pm - Edited by: gcrank1
Reply
I used that statement as an example not necessarily a recommendation. The caveat I mentioned is that you have to have enough hp to drive the increasing load produced by the alt/gen as it spools up and is creating more electricity.
Think of the pulley as 'gears with no teeth'; ie a 36t driving a 18t will make the 18 spin twice for every one of the 36. So, yeah, the teeth are on the outside, the circumference.
This with pulley assumes no slip.
Fwiw, on my too small an engine I couldnt use a big enough pulley to drive the alt with the pulley it came with to produce the charge I needed.
Ymmv
As an afterthought regarding charging In general, the gen charging with a vehicle alt/gen is good for bulk charging; just what it was intended for. Not so good for the absorb phase which properly takes far longer with diminishing amps going in. Noisy and inefficient that.
But we do what we gotta do.
|
|
Bruces
Member
|
# Posted: 24 Nov 2021 09:28am
Reply
It takes about 1hp to turn every 25 amps of alternator as a general rule ,you “currently†have nothing left to play with so messing with gearing you will need to keep it pretty tame .
|
|
gcrank1
Member
|
# Posted: 24 Nov 2021 10:10am - Edited by: gcrank1
Reply
Maybe I did something wrong?
My 3.5hp B&S belt drive to an little old Toyota car alt never made 25amps output at any rpm including wide open, an rpm I most certainly did not want to have to run at. At the time I had a direct drive tachometer for my trials.
I tried to find an rpm I could stand and get as many amps as possible, various pulleys on engine, as expected, as I went up in size the drive torque went down. The 'happy place' engine rpm for having to listen for about two hrs every morning (in an otherwise quiet woods ) just could not put enough amps back in to make up for the prev night mostly 25w incand. rv light bulb (25w/12v=2+amps per hr) so figure about 15a discharge. I was always in deficit 'spending'.....That told me I was gen'ing less than 7ish amps out of that Toy alt. The more the deficit added up the worse it got.
Total fail unless I would run it most of the day?
|
|
Fanman
Member
|
# Posted: 24 Nov 2021 09:07pm
Reply
3.5HP is 2610W, so it should be more than adequate for any normal car alternator, but you need to select pulley sizes to spin the alternator at its design rpm. 2610W at 13.5V that is nearly 200A.
140W is only 10.4A at 13.5V.
Of course if you're charging a battery through a regulator (or modern internally regulated alternator), the current is only what the battery is taking which decreases as the battery charges, not necessarily the maximum capacity of the alternator.
Pulley ratios, diameter ratio or circumference ratio gives the same number.
|
|
gcrank1
Member
|
# Posted: 25 Nov 2021 10:37am - Edited by: gcrank1
Reply
It would spin fine....until I hooked the leads from the ext reg to a discharged battery (no problem with a charged bat), the heavy amps load would heavily bog the engine. Pulley'ing enough to overcome the bog to get an rpm that was 'not terrible' to have to listen to gave dismal amps charging.
Determined I needed a bigger engine.
In fact, I would have probably been better off starting the truck and jumper cabling to the cabin bat. Ready made charger.
Just my experience in messing around with junk I had.
|
|
kittysmitty
Member
|
# Posted: 22 Aug 2022 08:04am
Reply

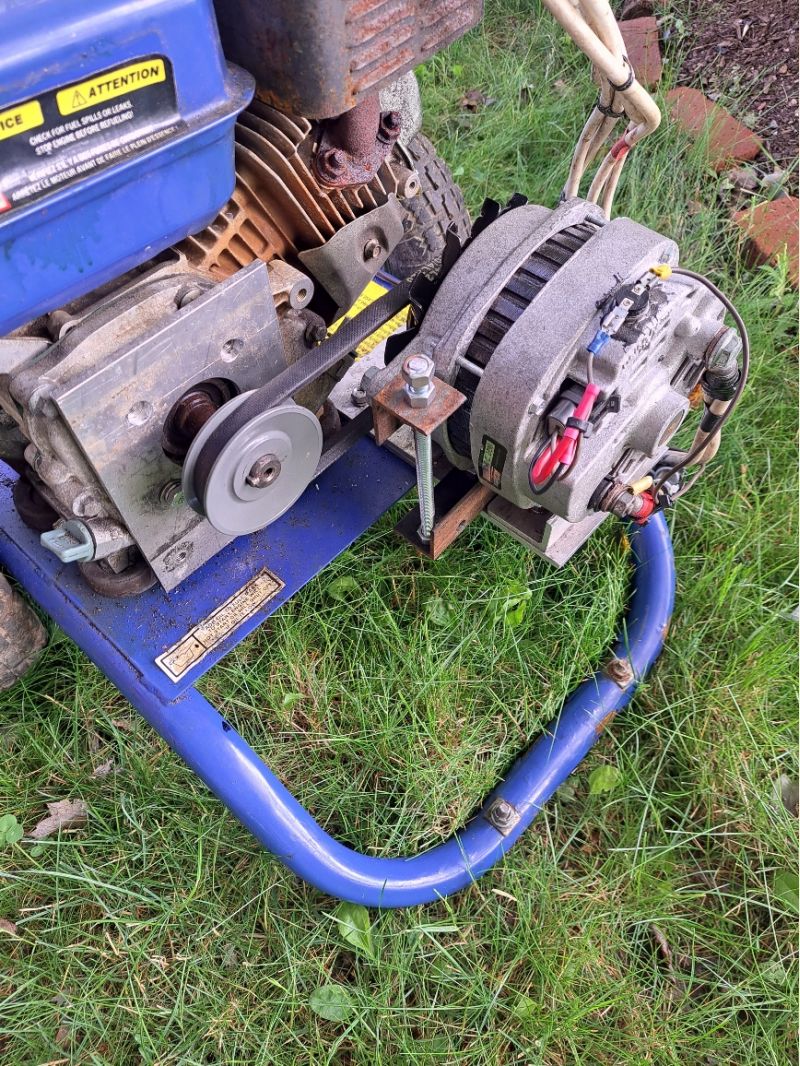

Well finally got around to making some improvements. Decided to go with pulleys instead of direct coupler. 2.5 inch on Alternator and 3 inch on engine. a 1.2 to 1 ratio. I was concerned with the engine not have the power with a bigger ratio, and with an increase in alternator RPM comes an increase in power output and heat. Haven't had a chance to do any testing yet.
|
|
gcrank1
Member
|
# Posted: 22 Aug 2022 09:37am
Reply
That sure should be an improvement with the 'drive' issue.
Now you can concentrate on the effectiveness.
Since this is a simple engine driven alt why not just wire in an inexpensive automotive ammeter?
|
|
kittysmitty
Member
|
# Posted: 22 Aug 2022 02:19pm
Reply
I though of that but the inexpensive automobile ammeter that I have found have a range of plus or minus 60 amps. The alternator is capable of 140, but I doubt it will ever see that.
|
|
paulz
Member
|
# Posted: 22 Aug 2022 03:01pm
Reply
I think that's why cars went to volt gauges, having that much amperage running through the firewall into a cabin gauge got to be too much.
You could use two 60A gauges if you peg the first one. I bet I have 20 of those things.
Neat project.
|
|
toyota_mdt_tech
Member
|
# Posted: 22 Aug 2022 03:41pm - Edited by: toyota_mdt_tech
Reply
Anything over 60 amps you will want a shunt type ammeter. 140 is just way too much massive load on engine charge battery too fast a slower charge is a better bet. Go to your parts store ask for a 7128 (Lester number) alternator, this is the early 10SI integral rated from 37-42 amps, trust me, be perfect. Charging fast isnt desirable unless you want a shallow surface charge.
A volt meter be a better option anyway no loads going throught it like a ammeter
|
|
gcrank1
Member
|
# Posted: 22 Aug 2022 07:38pm - Edited by: gcrank1
Reply
A dc clamp-on test meter, Fluke or clone, would let you tell what you are getting that 140a alt to output.
|
|
kittysmitty
Member
|
# Posted: 23 Aug 2022 06:11am - Edited by: kittysmitty
Reply
Quoting: toyota_mdt_tech 140 is just way too much massive load on engine charge battery too fast a slower charge is a better bet.
It's not going to an engine battery, going to a 1500 amp hour battery bank. Any when using heavy loads, IE skill saw, it saves the load on the battery's and just kicks in the extra amps.
|
|
travellerw
Member
|
# Posted: 23 Aug 2022 05:04pm
Reply
I remember doing this dance in like 2009 for a cabin my father had back then. I started direct drive like you but moved to v-belt so I could get the RPMs. Quickly found out v-belts aren't up to any alternator over about 70A. Once I got over that I was swimming in belt dust and the belts didn't last very long. 55A was no problem. I contemplated a double belt setup, but never bothered.
In the end I abandoned all that and went with a 120 to 12V "Charger" (an Iota or Progressive Dynamics, can't remember the exact brand). It was an 80A charger and I drove it with a Honda 2000. I was much happier as it was quieter, simpler, easier on fuel and just WORKED without any messing around. Best of all the Honda still had 900W of capacity to work with. We would run it just after dark (middle of no where, no one to bother) and power the lights and fridge while it was running. It surprised me that it was better on fuel, but it was. The biggest thing was the noise, it was less than half the noise of the old open frame engines.
However, that was years ago and before COVID times. It looks like those chargers have jumped in price (like everything else). The Honda has too. Of course if you need a system that just works with no fussing, it might be worth the costs.
|
|
gcrank1
Member
|
# Posted: 23 Aug 2022 07:05pm
Reply
Im in agreement that running a 120vac charger is more user, and I think battery friendly.
Champion has a couple of small inv/gens. I have the gas 2000w, it is my 'Lil'Champ', has been totally great and a game changer; quiet, fuel efficient, <40#, pretty much 1 pull start, $450ish. It almost started my old 5000btu window air conditioner from cold but did trip out. That was a heavy load! When I babied the start up I did get it to run the AC.
It seems to do everything Ive heard the Honda's do though only time will tell on the longevity. Frequent synthetic oil changes are my friend.
Based on my experience a good friend bought the upsize 2200w? dual-fuel version. He put oil in it, hooked up the bbq grill 20# tank and it fired right up.
If I were buying one today this is the model I'd get.
With that 1500ah lead acid battery bank you may only be getting a bulk charge in and not really getting the bank through full absorb stage, that would take probably too many hours of running the 'diy gen' for listening pleasure. When the bank gets to absorb stage the amps it can take drop waayyy back; just the nature of FLA bats, as they get more charged the internal resistance rises so the amps it can accept keep getting less.This is where solar, if practical, would be nice, a quiet absorb stage through the day.
|
|
Brettny
Member
|
# Posted: 23 Aug 2022 08:38pm
Reply
Quoting: kittysmitty Well finally got around to making some improvements. Decided to go with pulleys instead of direct coupler. 2.5 inch on Alternator and 3 inch on engine. a 1.2 to 1 ratio. I was concerned with the engine not have the power with a bigger ratio, and with an increase in alternator RPM comes an increase in power output and heat. Haven't had a chance to do any testing yet
That engine may not like being pulled to the side like that. The "spider piece" your talking about is called a Lovejoy coupler. If you cant get them to last then typicaly it's one of two issues. It could be miss aligned shafts or your putting to much power through it. Typicaly they have a HP rating.
I have a knock off love joy driving a 15hp log splitter I made about 9yrs ago and never had an issue.
|
|
gcrank1
Member
|
# Posted: 23 Aug 2022 08:52pm
Reply
1500ah bat bank, what type and how configured?
If FLA, and that includes AGMs, you have max usable of 750 (to 50%) and for lifespan should be using only about max 500 (the top 30%) most of the time.
If you stay in that top 30% your recharge will be quicker, bats live longer/replacement is less frequent and expensive.
|
|
toyota_mdt_tech
Member
|
# Posted: 23 Aug 2022 08:54pm
Reply
Quoting: travellerw Quickly found out v-belts aren't up to any alternator over about 70A
Bingo, been trying to tell them.
|
|
gcrank1
Member
|
# Posted: 24 Aug 2022 10:20am - Edited by: gcrank1
Reply
Ive seen more than a little regarding big battery bank charging with alternator on the 'van-life' and 'marine' forums, and those real engine driven so hp isnt an issue.
|
|
toyota_mdt_tech
Member
|
# Posted: 31 Aug 2022 10:27am
Reply
Quoting: kittysmitty Time to work on Generation 4 with a belt drive, more forgiving and as you suggested and with a 2 to 1 ratio will spin the alternator faster for more output. An added benefit might be increased cooling with a faster fan speed.
Downside is even a heavier load on the engine, this will create belt slippage. A micro V groove with 6 ribs, lots of surface area.
|
|
