Hello all,

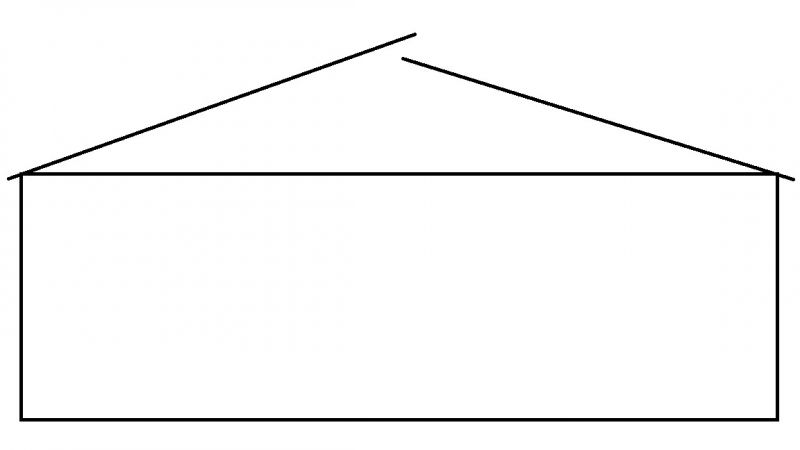

Recently started a kitchen/bathroom addition to our 12’X20’ cabin. The first image is a rough sketch of the 20’ side.

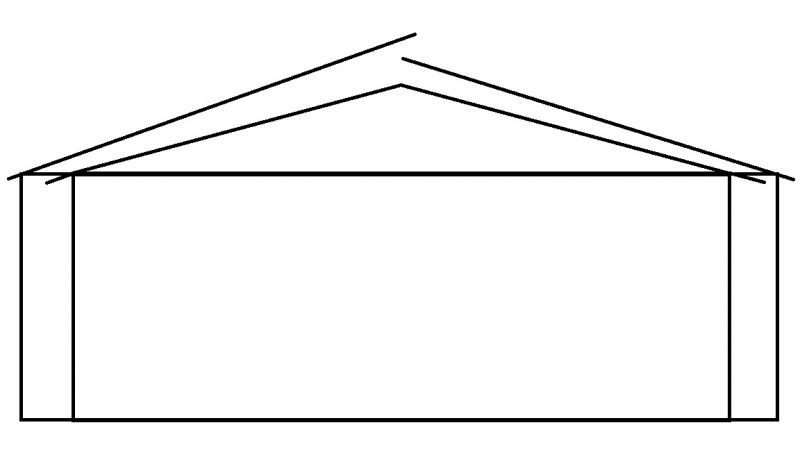

The second image is a rough sketch of the 8’X16’ addition against the 20’ cabin side.
I already have the foundation in place and the floor framed in. The walls will be easy enough, it’s the roof design I’m struggling with. The two rooms will be divided equally, so I was thinking about a wall a couple feet taller than the others to divide the two rooms and use as the ridge for rafters.
Any thoughts? Thanks for your time.
Brian
|
|
rockies
Member
|
# Posted: 15 Aug 2018 05:27pm
Reply
Yes, you could run a wall down the middle of the room and use it as a bearing support wall. I trust you have beams and supports in the floor under that spot to transfer the roof load down to the ground?
As an aside, why do the two roof planes not meet at the ridge on the original cabin? Is there a small vertical wall there?
|
|
Brian Ray
Member
|
# Posted: 15 Aug 2018 07:00pm
Reply
Thanks for the reply rockies
Quoting: rockies I trust you have beams and supports in the floor under that spot to transfer the roof load down to the ground?
I do have an additional beam under that spot just for this purpose.
Quoting: rockies why do the two roof planes not meet at the ridge on the original cabin?
Originally, this was a 10'X12' cabin with a sloped shed roof. I added another 10'X12' box to it with a shed roof, I'm happy with how it turned out. Image below.
|
|
rockies
Member
|
# Posted: 16 Aug 2018 05:40pm
Reply
The way your drawing looks right now, it looks like you are building an addition that is narrower than the original cabin and planning on butting the new roofs into the gable end of the old cabin. Just keep the new roofs at the same heights and slopes as the old roofs and increase the heights of the exterior walls to meet the underside of the new roofs. You'll wind up with deeper overhangs on the addition but everything will look tied together.
|
|
Brian Ray
Member
|
# Posted: 17 Aug 2018 12:47pm
Reply
Quoting: rockies Just keep the new roofs at the same heights and slopes as the old roofs and increase the heights of the exterior walls to meet the underside of the new roofs.
I think this is the way I'll go. In hindsight, I should have just built the floor the same width as the old cabin. My original plan was to build a sloped shed roof off the gable of the old cabin, then realized I wouldn't have enough pitch. Just poor planning on my part.
|
|
|
