Anyone have detailed plans for a 12x16 cabin with a gamble roof? I know what im looking to do, but have never built anything before. It seams preaty straight forward but some plans would sure make me feel better.
|
|
Don_P
Member
|
# Posted: 16 Aug 2014 01:43pm
Reply

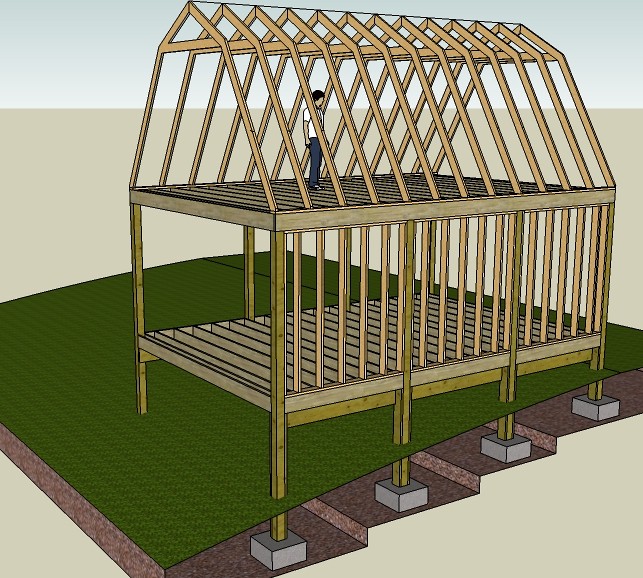

This was a concept drawing of something a little bigger, a 16x24 postframe barn. Features continuous posts from footing to top plate to adequately brace the structure, tied gambrel rafters to resist horizontal thrust.
|
|
Ruggles
Member
|
# Posted: 17 Aug 2014 09:48pm
Reply

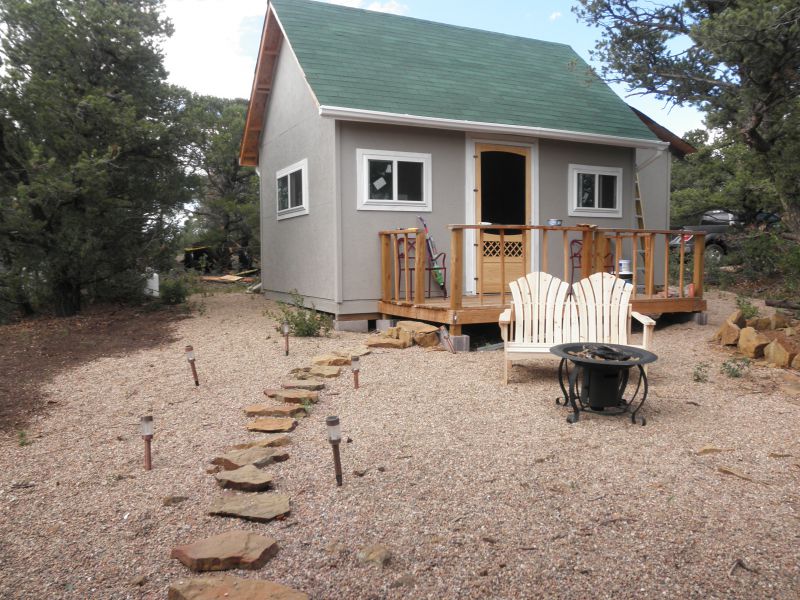

Here's a picture of my 12X16 in Colorado. I have jpegs of the plans if you'd like. I built them on a computer with simple power point software.
Jeff
|
|
Ruggles
Member
|
# Posted: 17 Aug 2014 09:50pm
Reply
oops
|
|
Redline3504
Member
|
# Posted: 21 Aug 2014 12:14am
Reply
Thanks for the replys. Thats a good looking cabin Ruggles, but not quite what im looking for.
|
|
VTweekender
Member
|
# Posted: 21 Aug 2014 11:53am
Reply
look at http://www.townandcountryplans.com and scroll to the bottom and find the free plan offered, might be what your looking for.
|
|
ThomD
Member
|
# Posted: 25 Aug 2014 02:15pm
Reply
I would break out the problem into looking at what kind of foundation you are building; that will pretty much dictate walls, for instance you don't need posts as well as studs to build a house on a slab or a lumber deck. You can easily support second story loads (that tub or sofa), with 2x4s on 16 inches. In reality your spacing could easily be 3 feet, but codes don't read that way around here; then source the specific roof truss or rafter, you can make minor stylistic changes based on the look you are after, the basic issue is span, spacing and the component size. You can raise or lower the depth of the roof without much worry.
Good places to look are all the Styles plans in their various books. You can mix and match many of the plans whether for workshops, sheds, or cabins, somewhere they will have your roof details, etc...
There are various government publications that will give you expert info on building the box below the roof.
Over the years the likes of Popular Mechanics have published just about every shed/cabin design you could imagine. Search Google books for back issues.
Finally a great source for design info is to look at stuff like picnic shelters in your locality. These are often creative timber designs, and they are built for your local conditions. If they stand on four corners with no walls, they are easily adapted to any plan you may want to develop. Of course Gambrels in your case are rare, but so long as it elevates a ring around the perimeter upon which a roof can rest, you have what you need to go ahead with a truss or rafter. Check local code on rafter sizing and spacing, often will specify for garages or sheds, and you can apply that to a stick roof of any configuration.
Here are some specs:
http://www.easyrafters.com/gambrel.htm
The thing about modern materials for small buildings is that it is a system with only a few rules, once learned you can throw them together in any applicable combination.
|
|
Higgins
Member
|
# Posted: 12 Sep 2014 06:47pm
Reply
Ruggles
I am interested in your plans for the 12x16 house. My wife and I are trying to build something similar.
Any plans/details would be much appreciated. Thank you.
Jason
Edmonton, AB
|
|
|
Willgraz
Member
|
# Posted: 2 Sep 2020 11:34pm
Reply
I know this post is really old, but I love the cabin and am looking for something similar. Do you mind if I get the plans? It would awesome!
|
|
MandyK
Member
|
# Posted: 5 Apr 2021 04:11pm
Reply
Ruggles
Do you still have those plans? My husband and I are doing our first build a ND have no clue what we are doing
|
|
frankpaige
Member
|
# Posted: 5 Apr 2021 04:27pm - Edited by: frankpaige
Reply
MandyK
Does that door window arrangement suit you? Some would question the door placement, some want bigger windows. Are these things that you and hubby have talked about?
There are free plans out there. Also, plans for garages that are this size. It is something you will be with for a long time.
I am sure there are others with plans on this site also. You came to the right place.
|
|
Brettny
Member
|
# Posted: 6 Apr 2021 08:10am
Reply
Quoting: MandyK Do you still have those plans? My husband and I are doing our first build a ND have no clue what we are doing
If you dont know what your doing a 12x16 shel can be delivered at a prety affordable price. A quick local search in my area shows a 12x16 lofted Dutch style barn for $8k..considering they have a price online I bet it's about $2k higher than a smaller company would sell one for. Most of the shed sales places dont actualy make them, just sell/deliver.
|
|
gcrank1
Member
|
# Posted: 6 Apr 2021 09:26am
Reply
From what Im seeing here those 'old' prices may be honored as the stock on hand was bought for less, but new builds are likely to reflect the current inflated lumber resupply costs.
|
|
|
