DaJTCHA
Member
|
# Posted: 26 Jun 2012 11:10pm
Reply
Through the assistance of many great posters here on SCF, I was able to rig up a lighting system in my camper up at camp. I will later use this same configuration in the "Shed Mahal" for its lighting needs. Many thanks to all those who helped me along the way.
We'll start with the battery box and ground and work our way to the superbrite LED's.

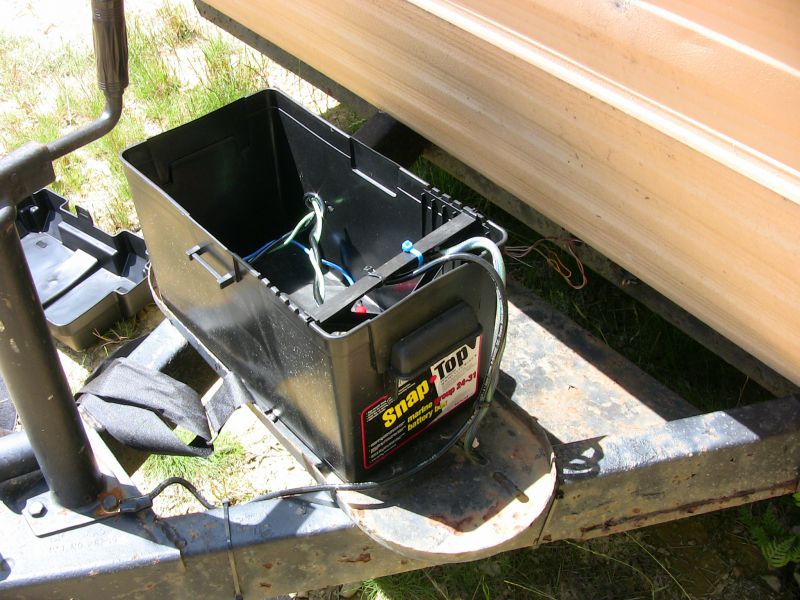

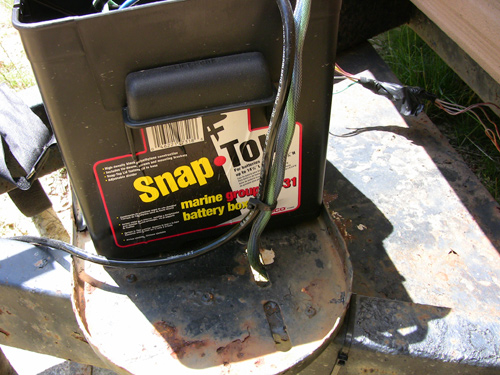

Tongue Mounted Battery Box
|
10 Gauge Leads, 8 Gauge Chassis Ground
|

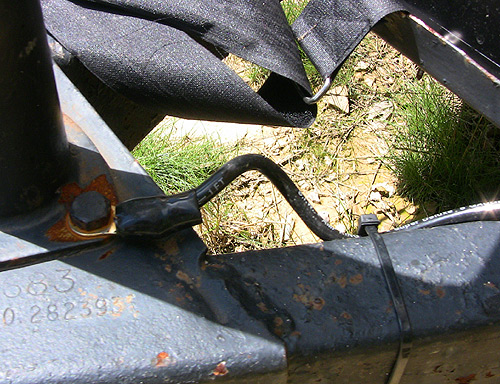

Gold Plated Chassis Ground Terminal
|

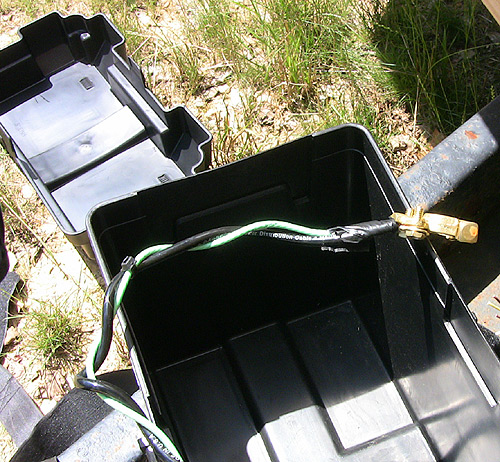

Brass Battery Terminal
|
|
|
DaJTCHA
Member
|
# Posted: 26 Jun 2012 11:15pm - Edited by: DaJTCHA
Reply
Next we move onto the inline fuse, into the camper and onto the light fixture. Now we have a choice of either using the 14watt Fluorescent or the SBLED.

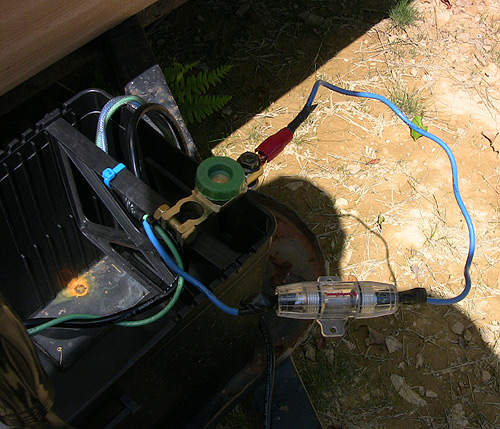

30 Amp Inline Fuse
|

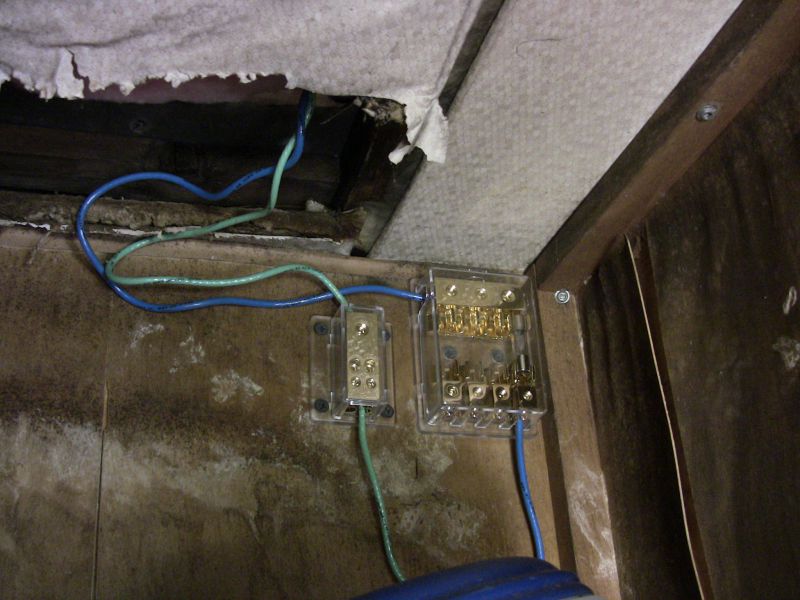

Fused Power Distrib. & Ground Distrib.
|
Tapping into the power / ground
|
Switched Power
|
|
|
DaJTCHA
Member
|
# Posted: 26 Jun 2012 11:19pm
Reply
Some photos of the fixture, switches and LED ran inside...

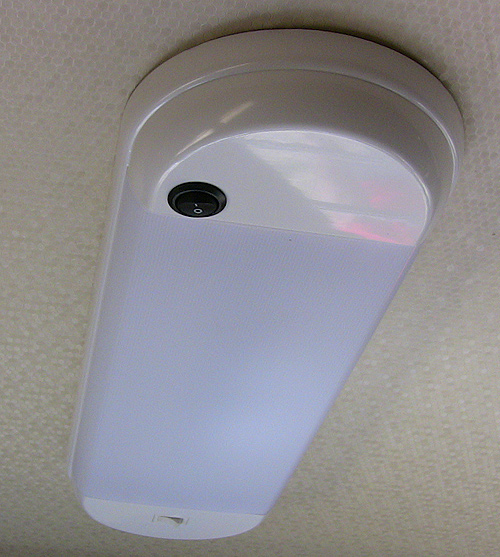

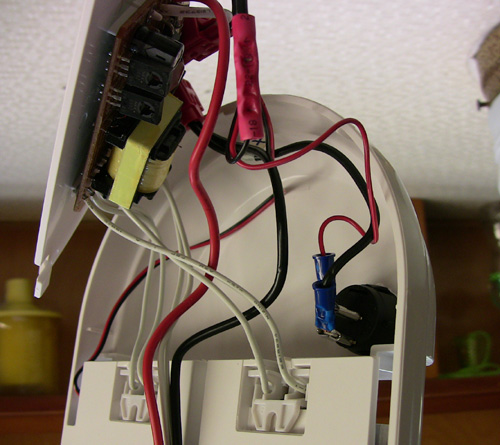

Light Fixture w/Dual Switches
|

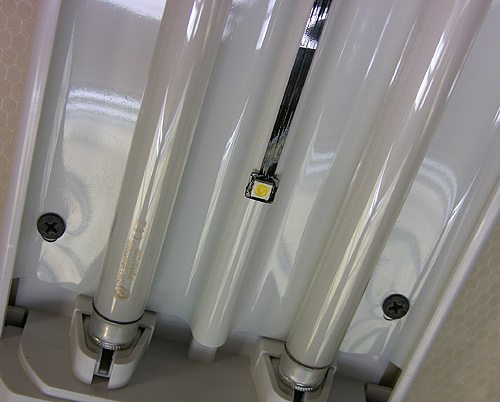

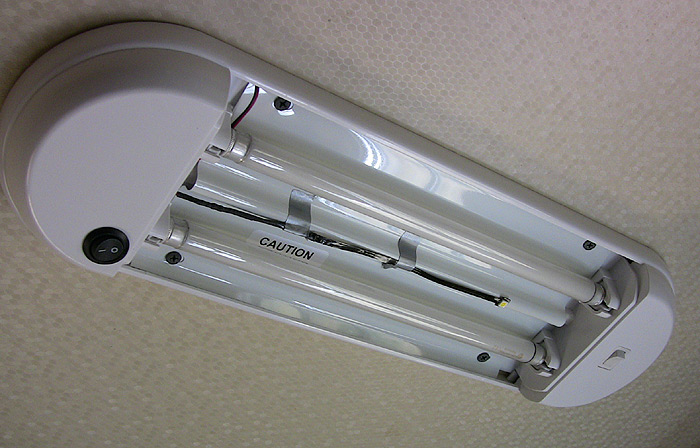

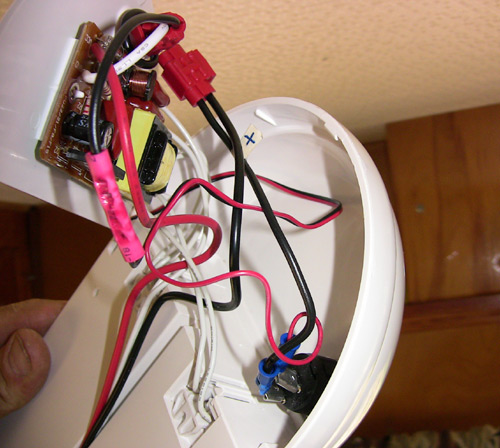

SBLED taped into place
|

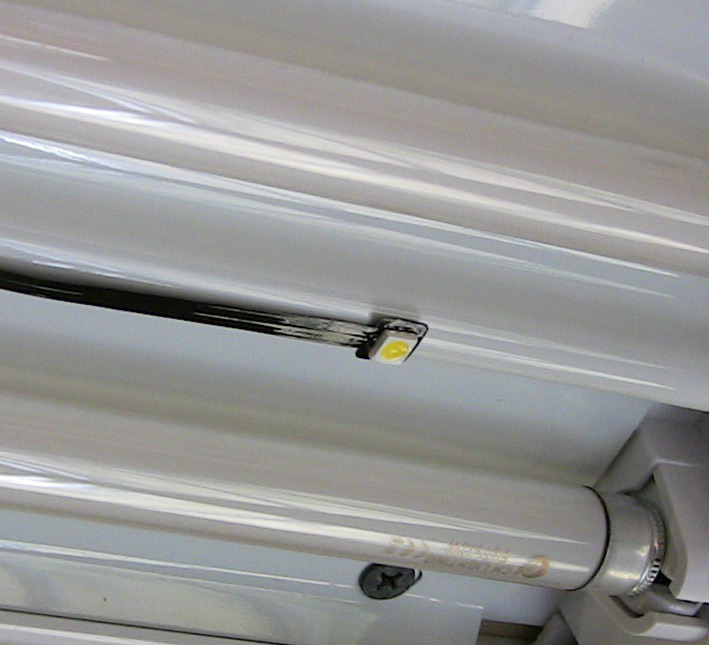

We're talking small a LED here
|
This LED puts out the light though
|
|
|
DaJTCHA
Member
|
# Posted: 26 Jun 2012 11:28pm
Reply
We were amazed at the amount of illumination, almost unbelievable given the size, that these LEDs put out. I'm going to definitely be using these exclusively inside my cabin in the near future...
10 Gauge Wire
30 Amp Main Fuse
10 Amp Fuses in the Distribution Center
(4) 14watt Fluorescent Light Fixtures
(4) Round Toggle Switches
(4) Warm White Super Brite LED's
Eventual Additions:
30 Amp Charge Controller
Solar Panels
(2) Cigarette Lighter Recepticles
(2) 12volt Fans

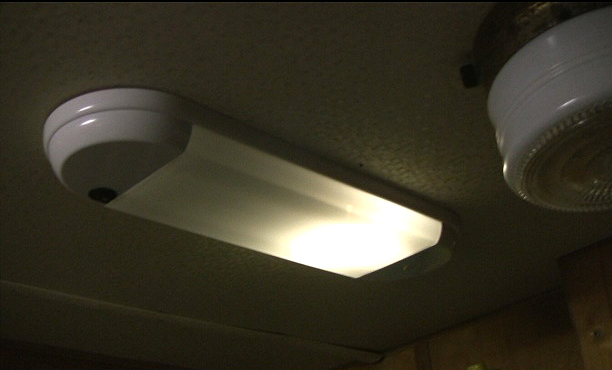

"Big" Power Draw
|

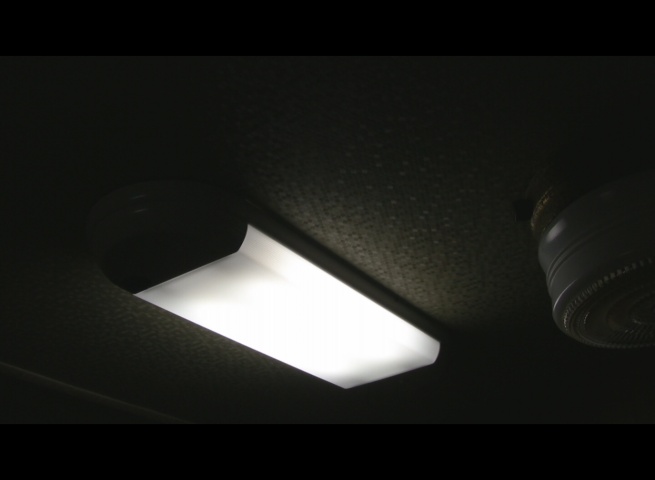

Minuscule Power Draw
|

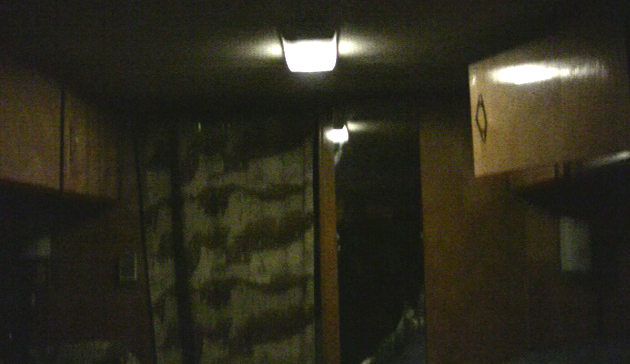

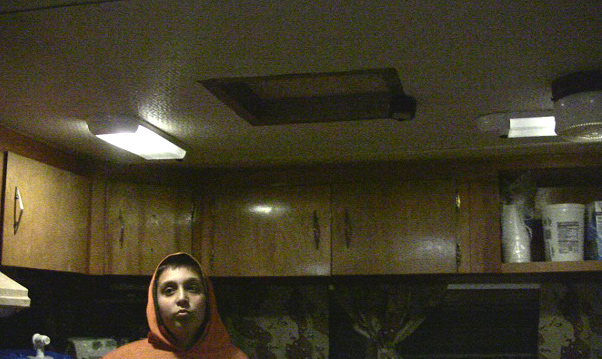

How's that for lighting things up?!
|
Very please with the end result!
|
|
|
exsailor
Member
|
# Posted: 28 Jun 2012 12:37pm
Reply
If you put two LEDs in each fixture it would be brighter than the big power draw light fixture. Congratulations! A very impressive conversion.
|
|
|
